充磁机、充磁线圈
MAGNETIZER & MAGNETIZER TOOL
MAGNETIZER & MAGNETIZER TOOL

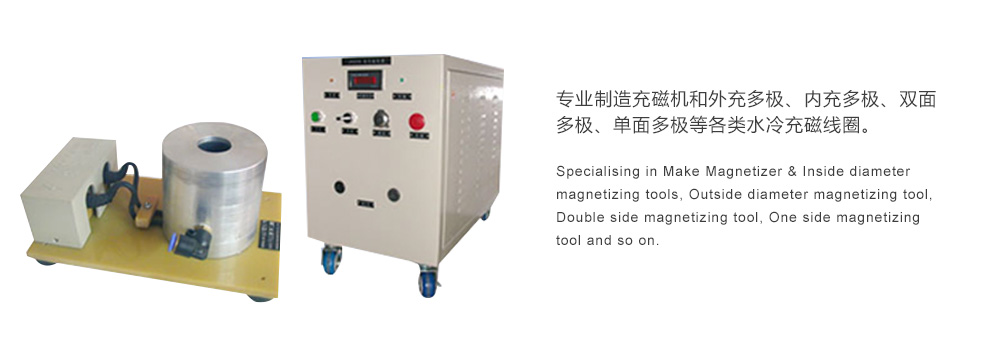

专业制造充磁机和外充多极、内充多极、双面多极、单面多极等各类水冷充磁线圈。
Specialising in Make Magnetizer & Inside diameter magnetizing tools, Outside diameter magnetizing tool, Double side magnetizing tool, One side magnetizing tool and so on.
主要技术指标
TECHNOLOGY PARAMETER
TECHNOLOGY PARAMETER
| 电源电压 Electrical Source Pressure | 220V±10% |
| 输入电流 Input Current | Max 10A交流 |
| 电源频率 Electrical Source Frequency | 50Hz |
| 输出电流 Output Current | Max 20000A直流 |
| 环境温度 Surroundings Temperature | -10~+40℃ |
| 输出电压 Output Pressure | 400~1500V直流 |
| 相对温度 Relative Temperature | ≤9554(25℃) |
| 电容容量 Capacitance Capacity | 1600μF |
| 功率 Power | Max 2KW |
| 充电时间 Charge Time | 0~2s |
| 重量 Weight | 80Kg |
| 充磁时间 Chargeing Mmagnetism Time | 50μs~300ms |
| 外形 Volume | 500×450×1100(宽×厚×高) |
以上为标准机型，其它机型需订做。本公司也可设计制作各种充磁夹具。
This is the standard type. Other types are required to be ordered.We also can design and make all kinds of charging magnetism clamps.
This is the standard type. Other types are required to be ordered.We also can design and make all kinds of charging magnetism clamps.
所有的参数都可能被修改，修改时将不另行通知。
All parameters may be modified and will be subject to change without notice.
All parameters may be modified and will be subject to change without notice.
