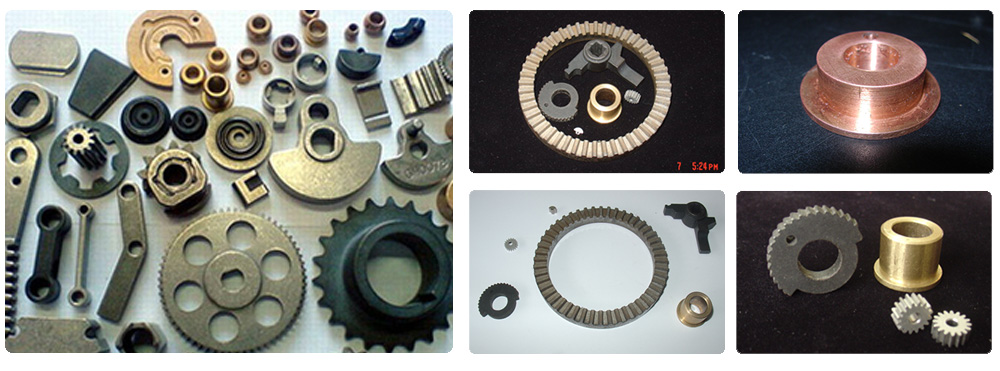

铁铜基粉末冶金零件
IRON & COPPER BASE P/M COMPONENTS
IRON & COPPER BASE P/M COMPONENTS
含油轴承
OIL IMPREGNATED BEARING
OIL IMPREGNATED BEARING
| 类别 Type |
牌号 Grade |
合金成分 Alloy Components |
物理-机械性能 Physical Mechanism Characteristics |
主要应用 Application |
|||
| 密度 Density (g/cm3) |
含油率 Oil Contined (Vol%) |
压溃强度 Crushing Strength (kgf/mm2) |
表现硬度 Apparent Hardness (HB) |
||||
| 铁基 Iron Base |
FZ1260 | Fe-C | 5.7-6.2 | ≥18 | > 25 | 50-100 | 风扇，洗衣机，搅拌机等电配件，办公设备仪表等 Electric Fan, Washing Machine, Mixer, Household Appliance Part; Office Facilities and Meter, etc. |
| FZ1265 | Fe-C | 6.2-6.6 | ≥12 | > 30 | 60-110 | ||
| FZ1360 | Fe-C-Cu | 5.7-6.3 | ≥18 | > 35 | 60-110 | ||
| FZ1365 | Fe-C-Cu | 6.2-6.6 | ≥12 | > 40 | 70-120 | ||
| AFZ1460 | Fe-Cu | 5.8-6.3 | ≥18 | > 28 | 50-100 | ||
| BFZ1460 | Fe-Cu | 5.8-6.3 | ≥18 | > 15 | 40-70 | ||
| 铜基 Copper Base |
FZ2170 | Cu-Sn-Zn-Pb | 6.6-7.2 | ≥18 | > 15 | 20-50 | |
| FZ2175 | Cu-Sn-Zn-Pb | 7.2-7.8 | ≥12 | > 20 | 30-60 | ||
所有的参数都可能被修改，修改时将不另行通知。
All parameters may be modified and will be subject to change without notice.
All parameters may be modified and will be subject to change without notice.
高精度、低噪音、耐高速微型含油轴承
MICRO OIL IMPREGNATED BEARING
MICRO OIL IMPREGNATED BEARING
| 类别 Type |
物理-机械性能 Physical Mechanism Characteristics |
主要应用 Application |
|||||||
| 密度 Density g/cm3 |
噪音 Noise (距离50mm) db |
含油率 Oil Contained (容积%) |
磨损量 Wear Extent (3000rpm×500g×200h). um |
磨擦系数 Friction Coefficient (3000rpm×500g) |
压溃强度 Crushing Strength MPa |
表面硬度 Apparent Hardness (300g/30s) Mhv |
寿命 Lifetime (3000rpm×500g), h |
||
| 铜基 Copper Base |
6.5-7.5 | <20 | > 18 | <12 | <0.4 | > 216 | 60-90 | > 2000 | 各类微型电机 All kinds of micro motors |
| 铁铜基 Iron and Copper Base |
6.0-6.8 | <20 | > 18 | <12 | <0.25 | > 216 | 60-100 | > 2000 | |
| 铁基 Iron Base |
5.9-6.6 | <20 | > 18 | <12 | <0.3 | > 245 | 60-100 | > 2000 | |
所有的参数都可能被修改，修改时将不另行通知。
All parameters may be modified and will be subject to change without notice.
All parameters may be modified and will be subject to change without notice.
铁基结构材料
IRON BASE COMPONENTS
IRON BASE COMPONENTS
| 类别 Type |
合金成分 Alloy Components |
物理-机械性能 Physical Mechanism Characteristics |
主要应用 Application |
||||
| 抗拉强度 Tension Strenghth (kgf/mm2) |
延伸率 Elongation (%) |
冲击韧性 Impact Toughness (kgf/mm2) |
密度 Density (g/cm3) |
表观硬度 Apparent Hardness (HB) |
|||
| 烧结铁 Sintered Iron |
Fe-C | ≥10 | ≥3.0 | ≥0.5 | 6.2-7.0 | ≥40 | 摩托车，汽车，电动工具，家用电器等 Motor Bike, Vehicle, Electric Tool，Household Appliance, etc. |
| 烧结低碳钢 Sintered Low-Carbon Steel |
Fe-C | ≥10 | ≥1.5 | ≥0.5 | 6.2-7.0 | ≥50 | |
| 烧结中碳钢 Sintered Midcarbon Steel |
Fe-C | ≥15 | ≥1.0 | ≥0.5 | 6.2-7.0 | ≥60 | |
| 烧结高碳钢 Sintered High-Carbon Steel |
Fe-C | ≥20 | ≥0.5 | ≥0.3 | 6.2-7.0 | ≥70 | |
| 烧结铜钢 Sintered Copper Steel |
Fe-C-Cu | ≥25 | ≥0.5 | ≥0.3 | 6.2-7.0 | ≥90 | |
所有的参数都可能被修改，修改时将不另行通知。
All parameters may be modified and will be subject to change without notice.
All parameters may be modified and will be subject to change without notice.
